Hydraulic Stump Grinders
FSI-H20
The Hydraulic stump grinder attachments in FSI’s H series are ideal for work in hard-to-reach areas like slopes, riverbanks or behind fences and stone walls.
The FSI H20 is mounted to the excavator or mini loader using a tool grip/ coupling. It includes an uncoated top plate to weld on a tool grip fitting on your machine.
The recommended machine size is 1.5-2.5 t with an oil flow of 30-50 l/min.
Requires free flow return to the tank (leak oil).
Price £4,395 + VAT
Free Delivery
See the specification sheets below for more information.
FSI-H20s
FSI H20S is a stump grinder attachment with an integrated swing movement for loaders and tool carriers. .
The H20S is attached using a tool grip/coupling, the stump cutter Is supplied with an uncoated attachment plate, bolted to the machine. An attachment suitable for the tool carrier can be fitted to the plate. We can if needed supply adaptor brackets for the most common loaders and tool carriers.
Two hydraulic cylinders ensure a stable sweep moment in either direction. Control of the sweeping movement can be done either from the tool carrier (5 hose version) or by an electronic control box (3 hose version) depending on the specifications and connectors available on the tool carrier or loader.
The recommended machine size is 1.5 – 2.5 t
Requires free flow return to the tank (leak oil).
Prices from £6,995 + VAT
Free Delivery
See the specification sheets below for more information

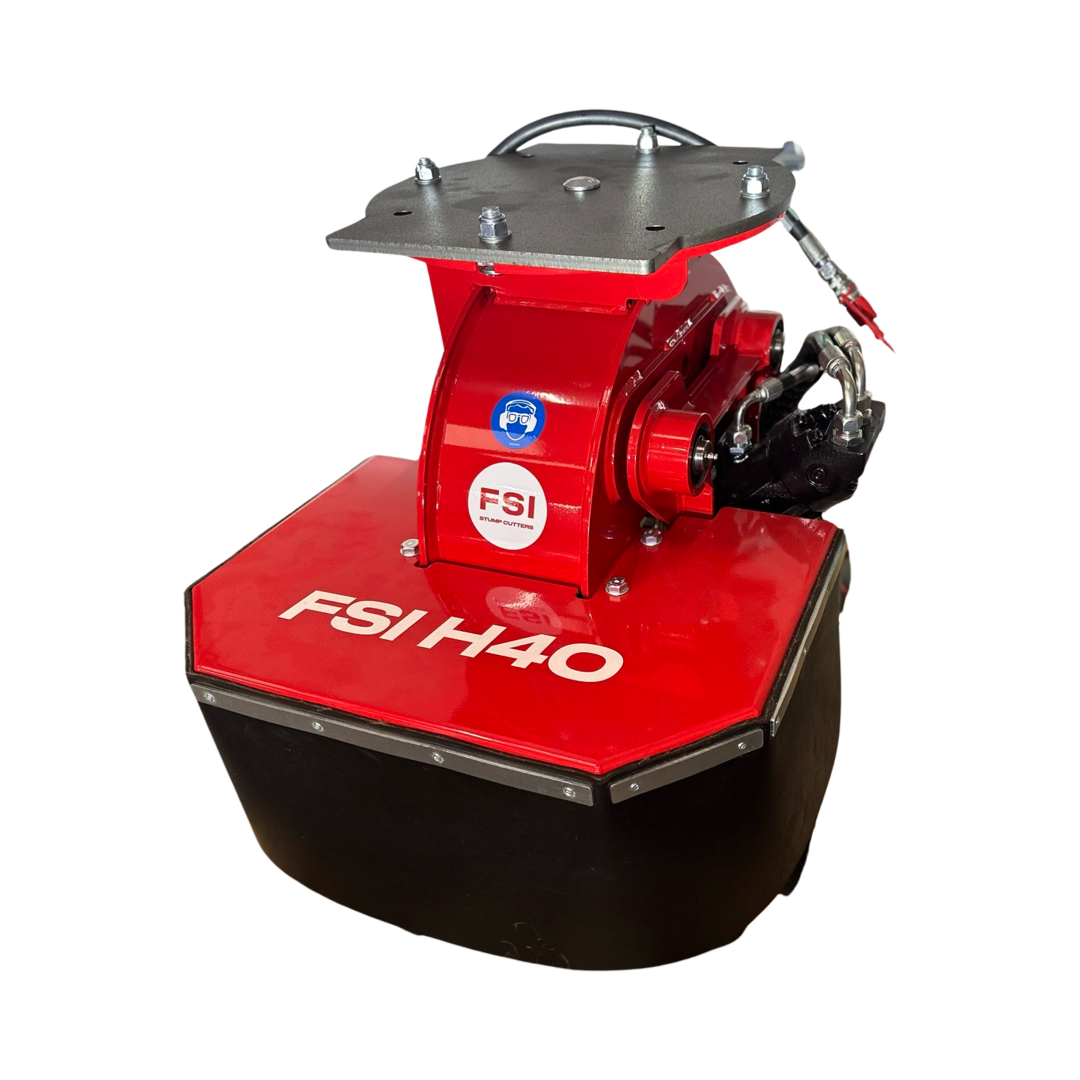

FSI-H40
FSI H40 is a stump grinder attachment for excavators, articulated mini loaders or similar machinery.
Recommended size of machinery: 3-7 t
The Hydraulic stump grinder attachments in FSI’s H-series are ideal for work in hard-to-reach areas like slopes, riverbanks or behind fences.
The H40 is mounted to the excavator or mini loader using a tool grip/ coupling and includes an uncoated top plate to weld on a tool grip fitting your machine.
The carrier machine is used to execute sweep and the up/down movement. With free choice of cutting direction and the option to adjust the cutting direction at a 45-degree interval in the joint between the unit and the fitting plate for the tool attachment.
Requires free flow return to the tank (leak oil).
Prices from £5,995 + VAT
Free Delivery
See the specification sheets below for more information.
FSI-H40s 50-75
FSI H40S 50-75 is a hydraulic stump grinder attachment with integrated sweep moment for fitting to loaders and tool carriers.
The recommended size of the loaders or tool carriers is 1.5 – 2.5 t with an oil flow rate of 50-75 l/min.
H40S is attached using a tool grip/ coupling. The stump cutter is supplied with an uncoated attachment plate which is bolted to the machine. On the plate an attachment suitable for the tool carrier can be supplied with adaptor brackets for the most common loaders and tool carriers.
The machine is equipped with a flange to attach the tool grip.
Requires free flow return to the tank (leak oil).
Prices from £8,695 + VAT
Free Delivery
See the specification sheets below for more information.

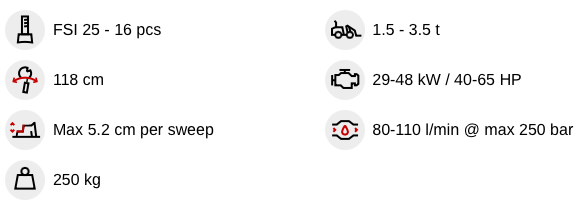

FSI-H40s 80-110
FSI H40S 80-110 is a hydraulic stump grinder attachment with integrated sweep moment for fitting to loaders and tool carriers.
H40S is attached using a tool grip/ coupling and is supplied with an uncoated attachment plate bolted to the machine which the attachment for the tool carrier can be fitted. We can supply adaptor brackets for the most common loaders and tool carriers.
Oil flow required 80-110l/min
Requires free flow return to the tank (leak oil).
The machine is equipped with a flange to attach the tool grip.
Prices from £9,995 + VAT
Free Delivery
See the specification sheets below for more information.

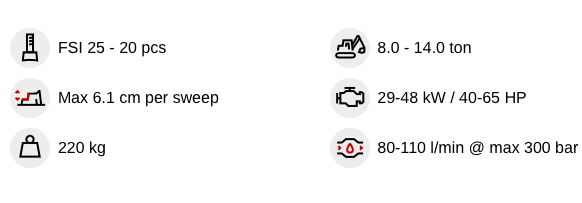

FSI-H52
FSI H52 is a stump grinder attachment for excavators, articulated mini loaders or similar machinery.
The recommended excavator size is 8 – 14 t with a flow rate of 80-110 l/min.
The cutting direction can easily be adjusted at a 45-degree interval in the joint between the unit and the fitting plate for the tool attachment.
Adjusting the cutting direction can be beneficial when cutting along walls or in limited space.
It comes with an uncoated top plate with the option of welding on a tool grip that is suitable for the tool carrier. We can offer a selection of tool grip fixtures if needed.
Requires free flow return to the tank (leak oil).
Price £9,495 + VAT
Free Delivery
See the specification sheets below for more information.
FSI-H65 100-130
Designed for an excavator or a similar equipment type, all operations of the H65 100-130, such as the sideways sweep and up/down moments are controlled from the machine with free choice of cutting direction.
The recommended excavator size ranges between 12-20 t with an oil flow of 100-130 l/min
The FSI H65 can be used on slopes, streets, in parks, or in difficult to access areas to remove tree stumps. It cuts up to 8.2 cm per sweep and handles an Ø105 cm (15/ 15 cm) stump in just 15 min.
The cutting direction can easily be set at 45-degree intervals in the joint between the unit and the fitting plate for the tool attachment.
It has an uncoated top plate on which an optional tool attachment can be fitted to connect to your machine. We can provide a section of fixtures suitable for your machine.
Requires free flow return to the tank (leak oil).
Price £13,795 + VAT
Free Delivery
See the specification sheets below for more information.
FSI-H65 135-160
Designed for an excavator or a similar equipment type, all operations of the H65 , such as the sideways sweep and up/down moments are controlled from the machine with free choice of cutting direction.
The recommended excavator size ranges between 12-20 t with an oil flow of 135-160 l/min
The FSI H65 can be used on slopes, streets, in parks, or in difficult-to-access areas to remove tree stumps. It cuts up to 8.2 cm per sweep and handles an Ø105 cm (15/ 15 cm) stump in just 15 min.
The cutting direction can easily be set at 45-degree intervals in the joint between the unit and the fitting plate for the tool attachment.
It has an uncoated top plate on which an optional tool attachment can be fitted to connect to your machine. We can provide a section of fixtures suitable for your machine.
Requires free flow return to the tank (leak oil).
Price £13,995 + VAT
Free Delivery
See the specification sheets below for more information.
FSI-H65 165-200
The H65 165-200 hydraulic stump grinder attachment for mounting on excavators and similar machines.
The recommended excavator size ranges between 12-20t and can handle up to 118 kw (160 hp) with an oil flow of 165-200 l/min.
For use on slopes, streets, in parks, or in difficult to access areas to remove tree stumps, the H65 can cut up to 8.2 cm per sweep and handles an Ø105 cm (15/ 15 cm ) stump in just 15 min.
The sideways sweep and up/down moments is controlled from the machine with free choice of cutting direction which can easily be set at 45-degree intervals in the joint between the unit and the fitting plate for the tool attachment.
The hydraulically driven stump grinder is delivered with an uncoated top plate which an optional tool attachment can be fitted to connect to your machine. We can provide a selection of fixture suitable for your machine where needed.
Requires free flow return to the tank (leak oil).
Price £14,995 + VAT
Free Delivery
See the specification sheets below for more information.
