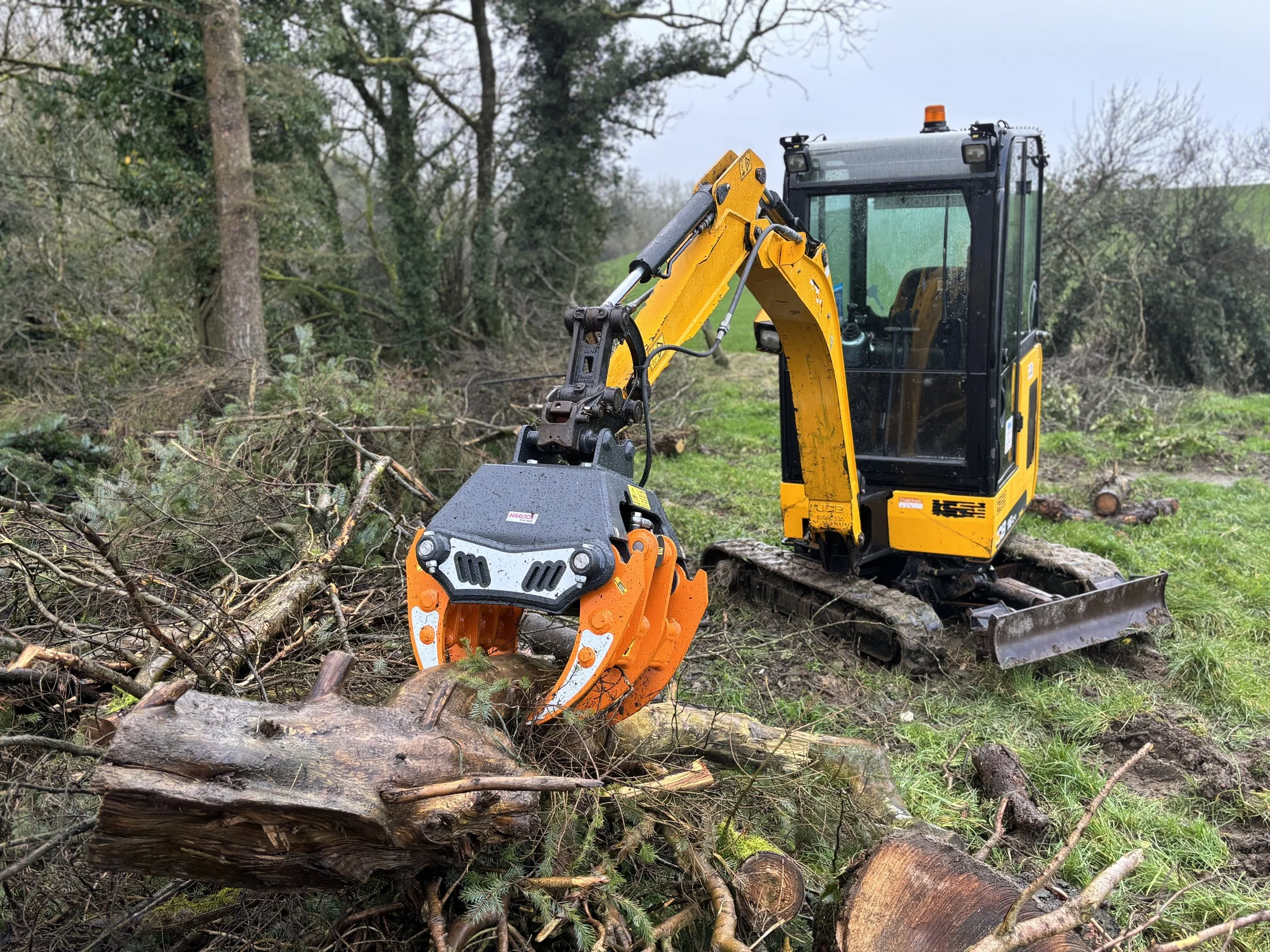

SX 700

Smallest Grapple In The Range

The SX700 Grab is designed for small excavators to carry out garden and landscape work, feed mulchers, or load trailers. MDE designed the SX700 to be durable, reliable, and easy to use, making it an essential tool in our customers' workflows.

Specifications

Excavators: 1.5t - 3t

Width: 480mm

Height: 518mm

Teeth Thickness: 12mm

Grapple Opening: 700mm

Grapple Closing: 55mm

Weight: 108kg

Rotation Optional

Prices from £2,380 + VAT

Free Delivery (Mainland UK)!

SX 850

Handle Material Efficiently

The second smallest grapple in the family. Although small in stature, the SX850 should never be underestimated; with its powerful gripping force, this attachment has no issue holding onto boulders and trees.

Specifications

Excavators: 3.5t - 5.5t

Width: 540mm

Height: 600mm

Teeth Thickness: 15mm

Grapple Opening: 850mm

Grapple Closing: 70mm

Weight: 165kg

Rotation Optional

Prices from £3,230 + VAT

Free Delivery (Mainland UK)!

SX 1250

The SX1250 will operate on the mid-range sized excavator and is ideal for small and large-scale operations. Our SX1250 is perfect for clearing sites and general landscape work.

Specifications

Excavators: 8t - 13t

Width: 730mm

Height: 890mm

Teeth Thickness: 25mm

Grapple Opening: 1750mm

Grapple Closing: 90mm

Weight: 560kg

Rotational Optional

Prices from £6,430 + VAT

Free Delivery (Mainland UK)!

SX 1400

MDE’s SX Grapple is a robust hydraulic grapple for excavators. Operators can quickly grab and hold onto logs, boulders, steel, and other debris. Its versatile design enables efficient grabbing, sorting, or stacking of materials. This model in the SX Grapple Range will suit most machines weighing 13 – 18 tonnes.

Specifications

Excavators: 13t - 18t

Width: 800mm

Height: 1020mm

Teeth Thickness: 30mm

Grapple Opening: 1860mm

Grapple Closing: 110mm

Weight: 716kg

Rotation Optional

Prices from £8,680 + VAT

Free Delivery (Mainland UK)!

SX1650

Largest Grapple In The Range

The largest in the SX grapple range, the SX1650 is built with heavy-duty Hardox® teeth and chassis, which means it is not short on build strength.

Specifications

Excavators: 18t - 35t

Width: 970mm

Height: 1230mm

Teeth Thickness: 40mm

Grapple Opening: 2200mm

Grapple Closing: 120mm

Weight: 1,500kg

Rotational Optional

Prices from £11,960 + VAT

Free Delivery (Mainland UK)!

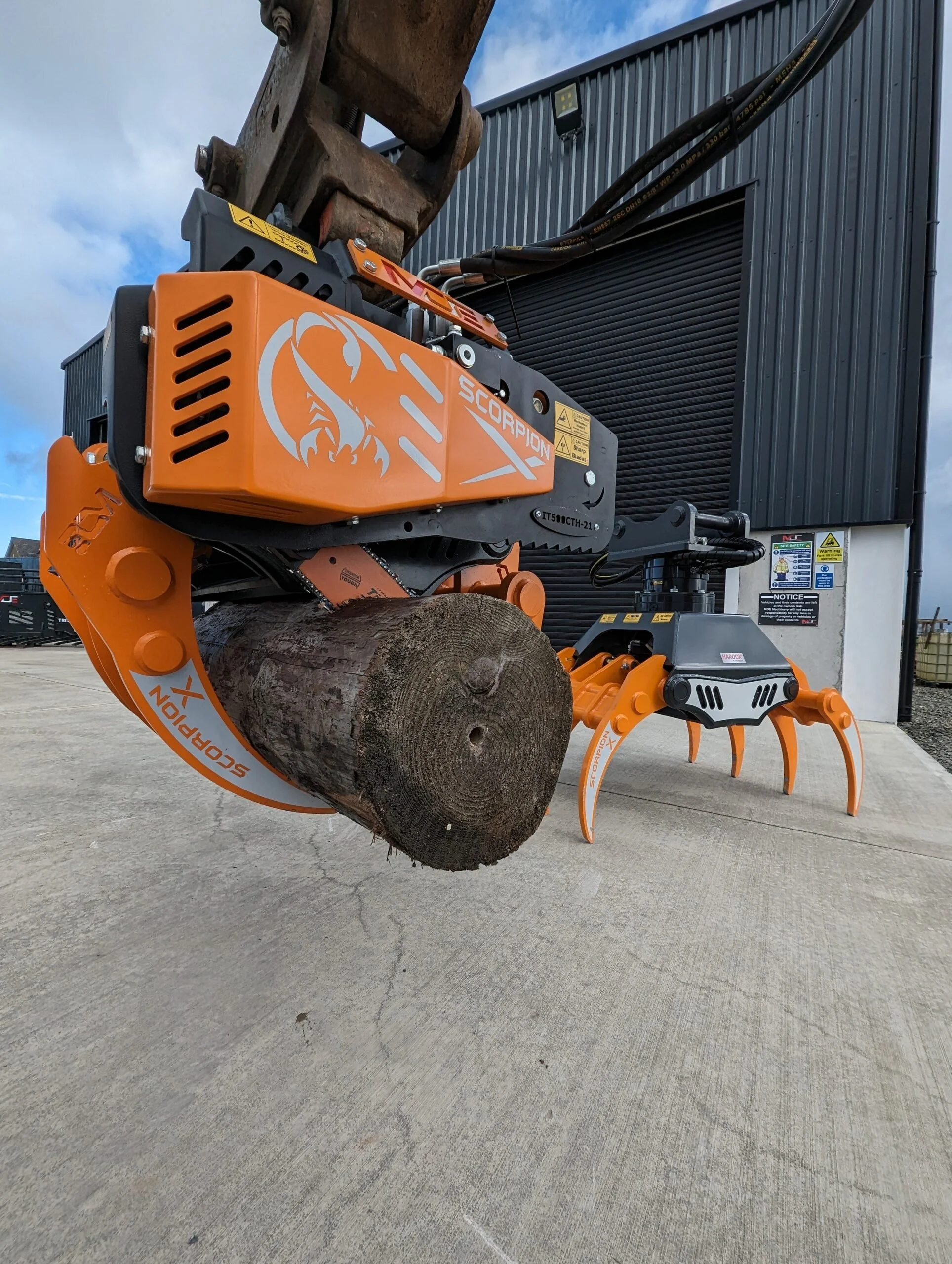

SAW UNIT

MDE’s Scorpion X Grapple Saw integrates a powerful chainsaw with a robust hydraulic grapple. This dual functionality allows operators to grab and cut timber efficiently in a single pass. Designed to hold and cut material securely, the grab can also be used for secondary pickup for fallen trees, branches, or other debris. Its versatile design enables efficient cutting, sorting, or stacking of materials on-site. This model in the Scorpion X Grapple Saw Range will suit the majority of machines ranging from 12 to 18 tonnes.

POA
