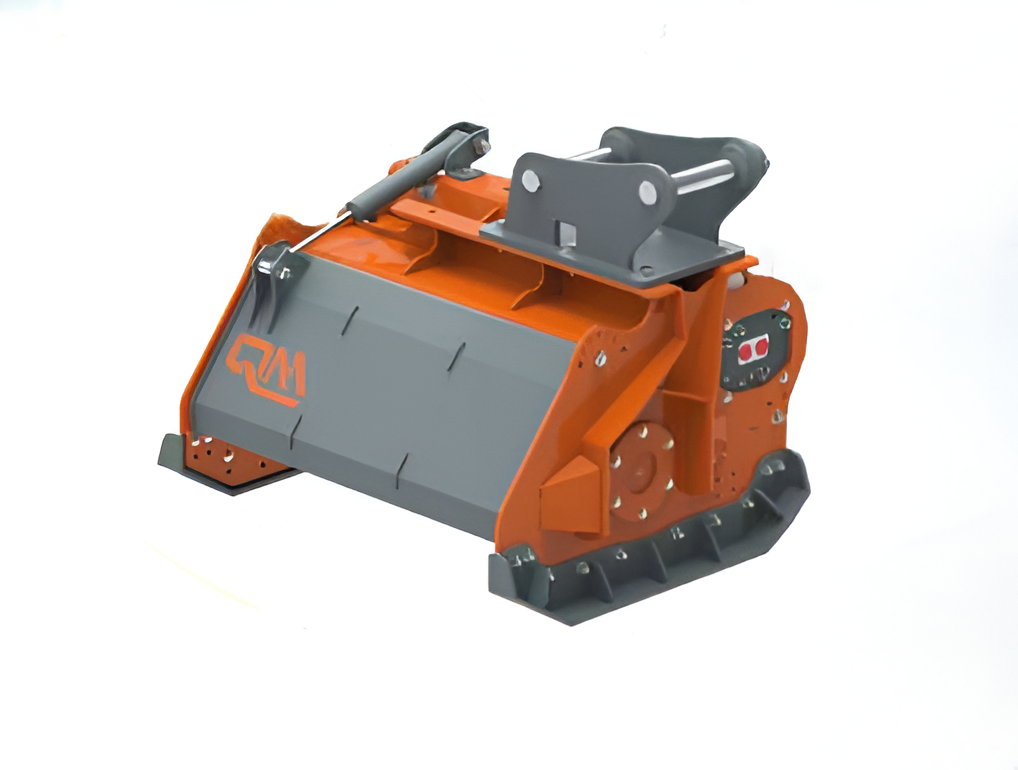

FM SERIES

The FM Mulcher is suitable for excavators from 4 to 18 tons. Designed to offer an ideal

balance between compactness, robustness and performance, it guarantees a long durability

even in intense working conditions. The FM series stands out for its versatility in a wide

range of applications, from forestry work to the maintenance of green spaces, offering with

its configurations of rotors and tools the ideal flexibility for differents works, from ordinary

management to operations the most demanding.

Features

Chassis with double cavity bottom, resistant to violent impacts and elastic
Internal toothed bars help finely chop material
Adjustable hood opening
Reinforced hood with double cavity bottom
Carter protecting the hydraulic system and the transmission system
Robust and large interchangeable support slides that regulate cutting height
Protection with CE compliant chain barrier
Bolted steel plate to arrange the machine coupler (unpainted)
Adjustable machine coupler position
Flow control valve block – shock proof valve - anti-cavitation valve - max pressure
(does not require drainage system)
Engine and hydraulic components enclosed inside the body, protected from impacts and debris
Spherical roller bearings which, thanks to a labyrinth of special seals, are better protected from impurities
Toothed V-belt transmission

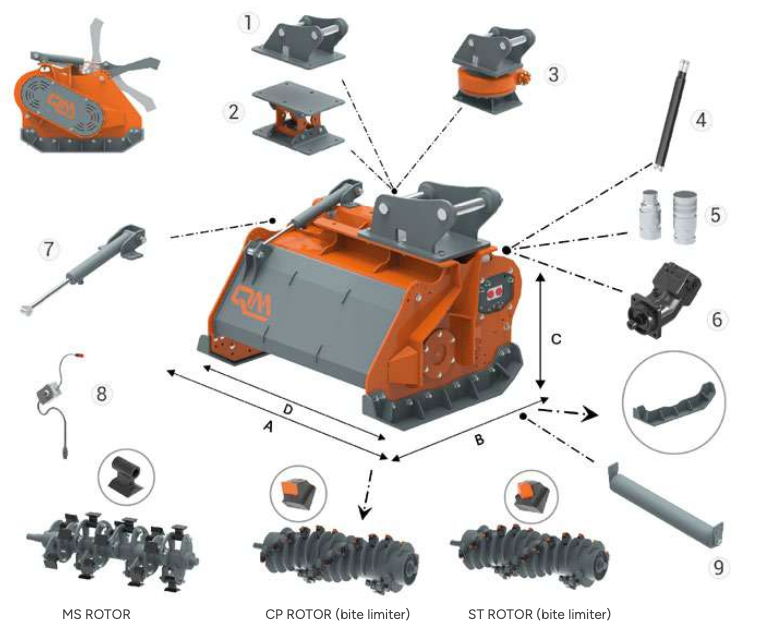

Possibility of configuring the rotor with retractable hammers (MS type), ideal for cutting grass and light
vegetation up to medium forestry, leaving the ground clean and debris finely chopped.
Possibility of configuring the rotor with fixed carbide cutting teeth (CP type) ideal for deep cleaning in mixed environments with shrubs, brambles and bushes
Possibility of configuring the rotor with fixed carbide teeth (ST type) ideal for extreme uses such as crushing large trunks down to the ground
High quality painting for greater resistance to impacts and wear
