FR SERIES
Fix-tooth mulching heads suitable for machines from 10.0 to 30.0 tons.

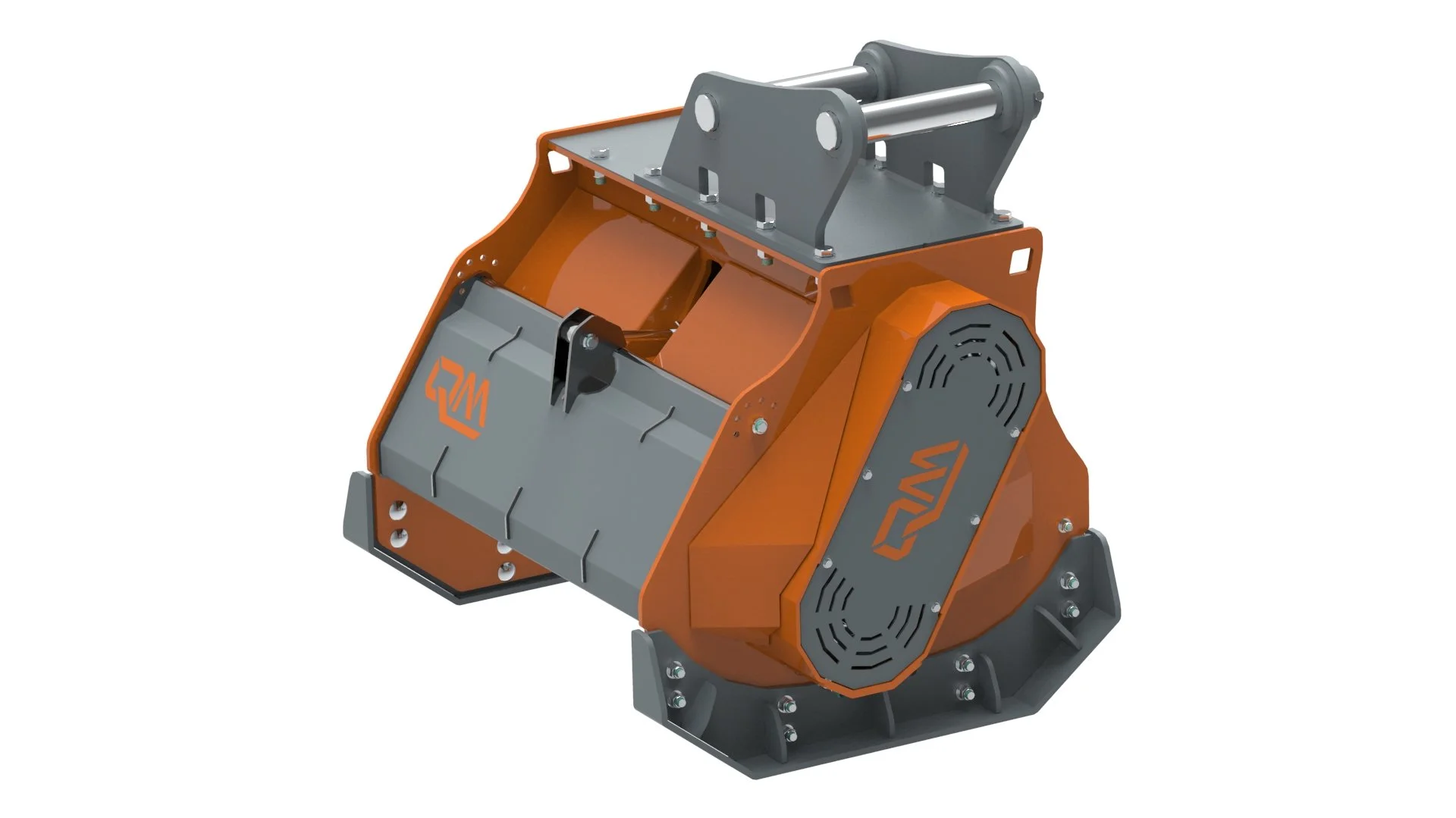

The model FR SERIES flail heads are applicable to excavators from 10 to 30 tons. They are designed for deep cleaning of wooded areas and crushing of large logs.
A sturdy shell made of high-grade material ensures stability, resistance to severe shocks, and yielding. The possibility of configuring the shaft with three different types of rotors guarantees solutions and excellent working performance on various terrains.
Features
Heavy shell with double cavity bottom, resistant to strong impact and yield
Internal toothed bars that help finely chop the material
Adjustable hood opening
Reinforced hood with double cavity bottom
Protective covers for the hydraulic system and transmission system
Sturdy and wide interchangeable support slides that adjust the cutting height
Chain barrier protection according to CE
Bolted steel plate where to prepare the machine connection (not painted)
Adjustable machine attachment position
Piston engine with external drainage for intense high-performance use
Flow control valve block-shockproof-anti-cavitation-max pressure
Engine and hydraulic components are enclosed within the shell, protected from bumps and debris
Spherical roller bearings that, thanks to a unique sealing labyrinth, are better protected from impurities Toothed V-belt transmission

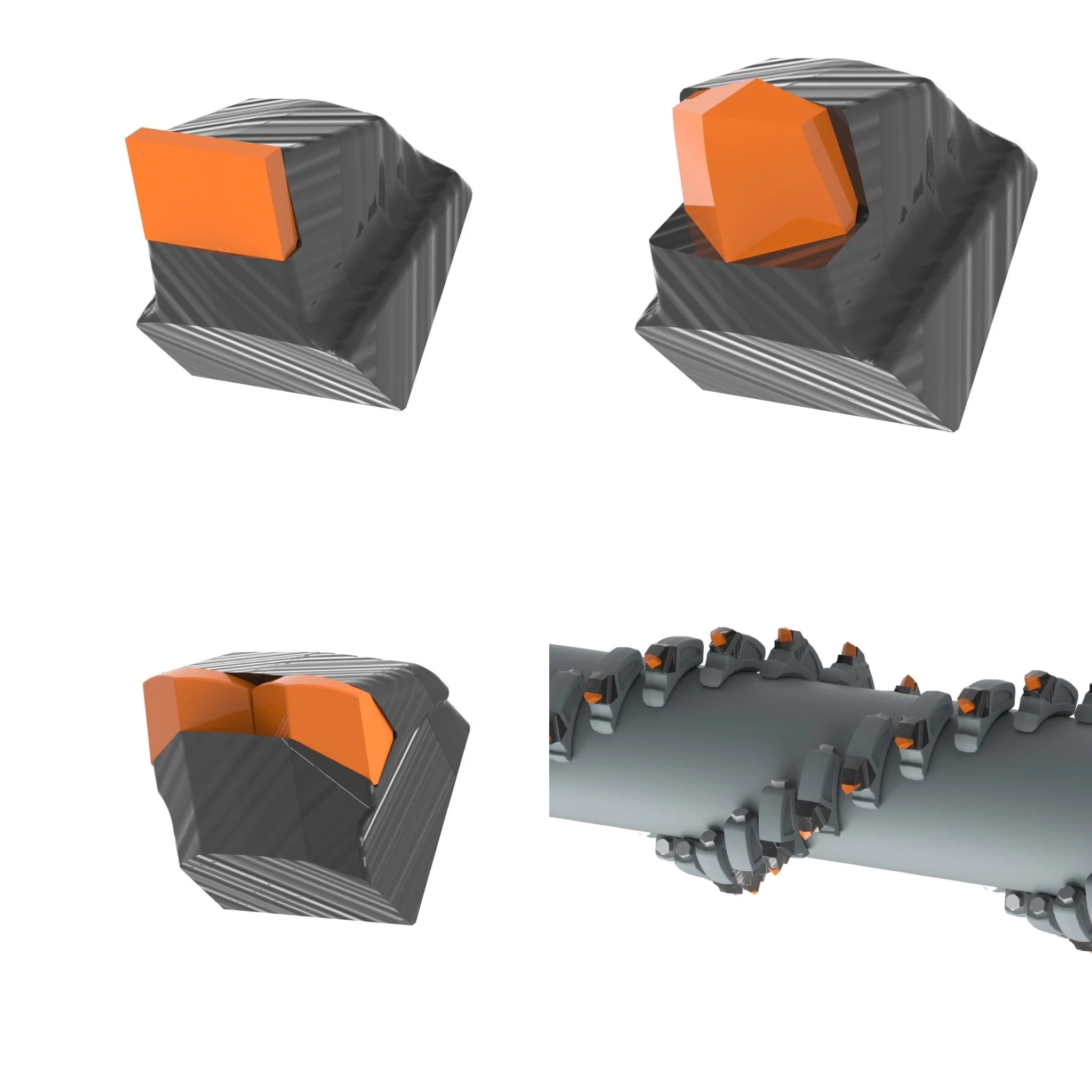

Option to configure the rotor with fixed carbide shear teeth (CP type) ideal for deep cleaning in mixed environments with shrubs, brambles, and bushes
Option to configure the rotor with fixed pointed carbide teeth (ST type) ideal for extreme uses such as crushing large logs down to the ground
Option to configure the rotor with fixed carbide double-tipped teeth (type ST2) ideal for heavy-duty use, provides greater wear resistance over time
