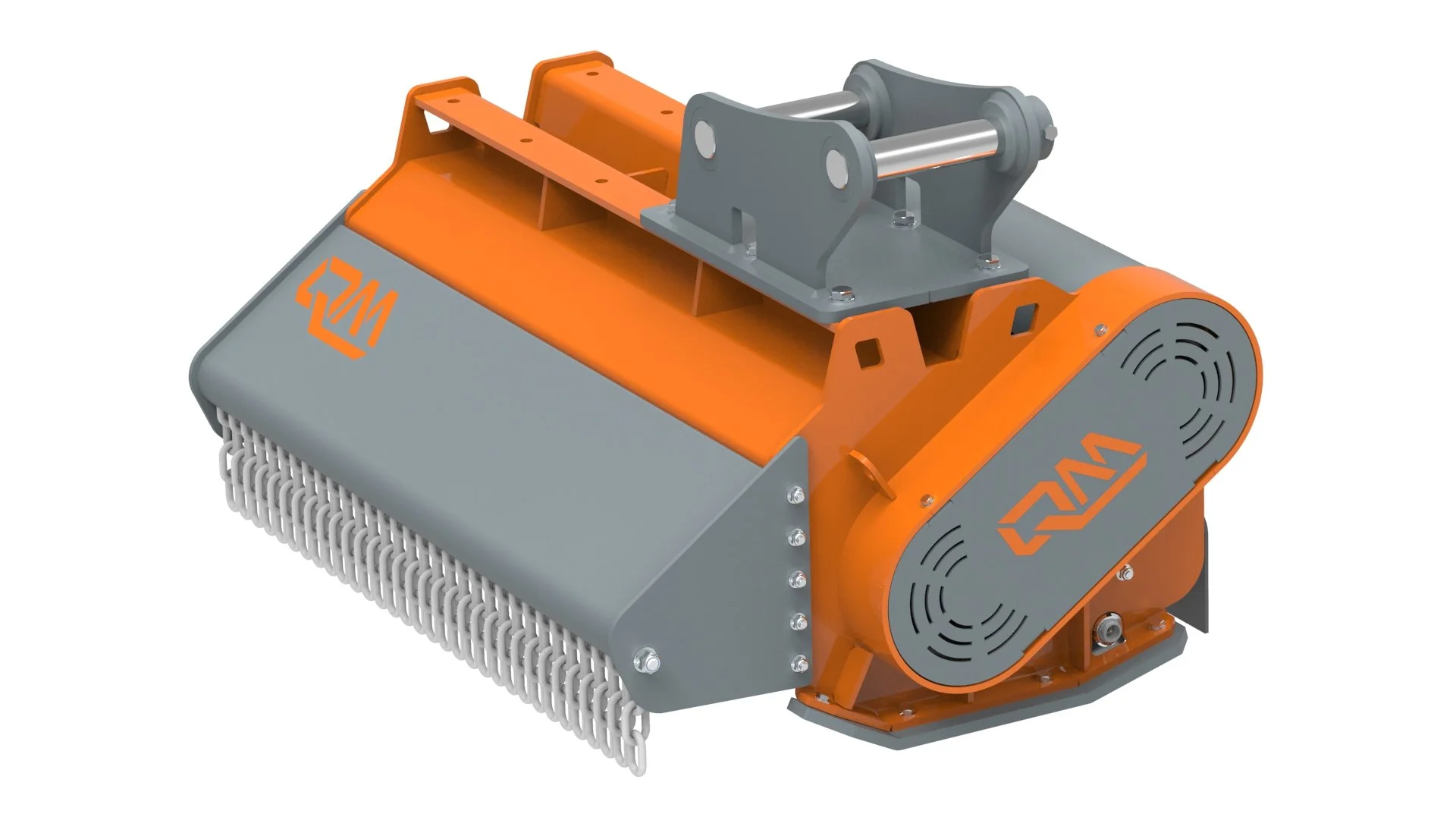

SR SERIES
Flail / Mulching heads suitable for machines from 4.0 to 14.0 tons.
Built with quality wear-resistant material, the SR SERIES boasts a sturdy shell that guarantees high productivity combined with impact and wear resistance that distinguishes it for professional use. The compact design is ideal for working in very confined spaces. Maximum cutting size Ø12 cm
Features
Compact and robust design
Frame with double cavity bottom, reinforced up to the point of connection with the front chains for greater impact resistance.
Spherical roller bearings are better protected from impurities thanks to a labyrinth of special seals.
Adjustable attachment position
Shaft with blades or hammers with fixed supports for a better shredding of the materials
Spiral-mounted tools for a better cutting performance
Thooted V-belt transmission with hammers or Y-shaped blades
Flow control valve – shockproof valve – anti-cavitation valve – max pressure (it does not require drainage pipe)
Shaft with hammers or Y blades
Internal toothed bar that helps to chop the material
Rear blade in rubberized, multi-layered, and tear-proof canvas
Support roller with through shaft for greater resistance
Wear-resistant and replaceable skids
Protection devices in compliance with current European Regulations according to CE norms
Bolted steel plate where to prepare the machine connection (not painted)

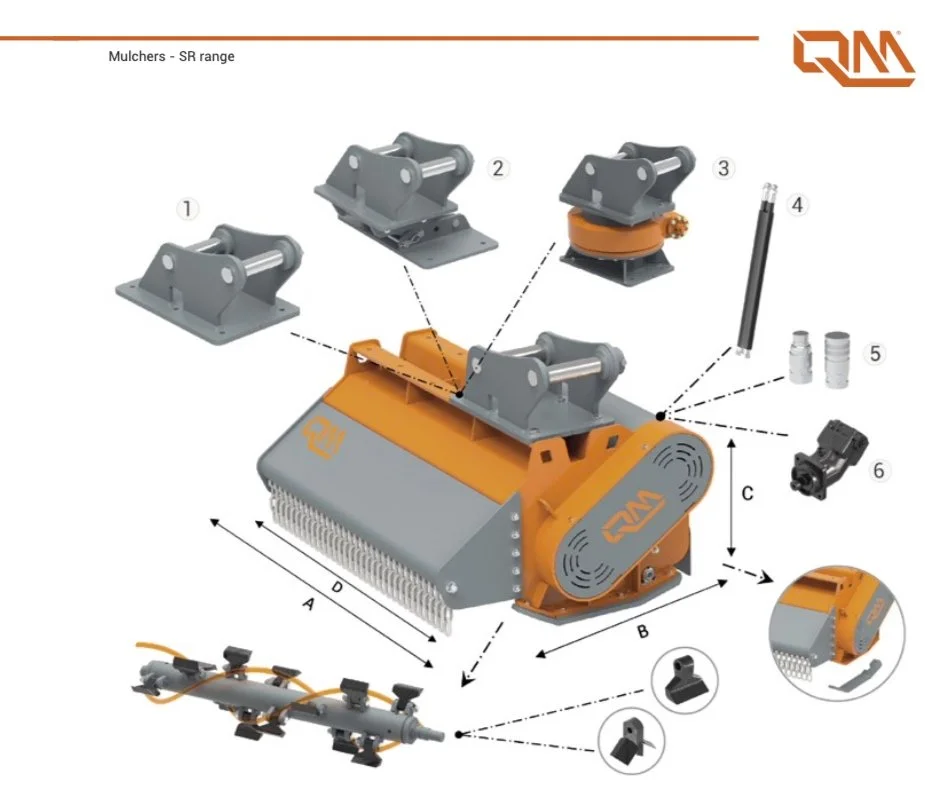

Available in four different cutting widths: 900mm, 1100mm, 1300mm & 1500mm (with Y-Blades or Hammers)
