FIREWOOD PROCESSORS

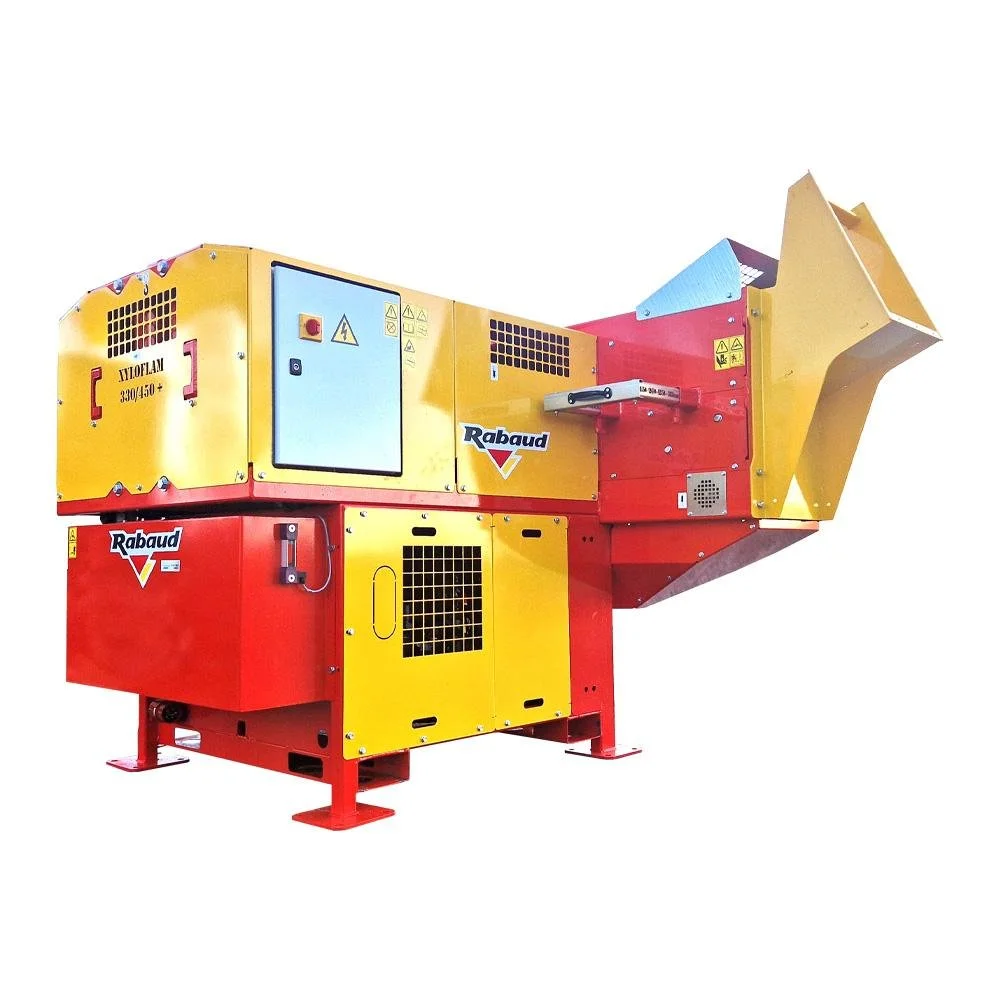

XYLOFLAM 330/450+
The XYLOFLAM 330/450+ can produce Kindling or Logs. This machine is for all wood types. It can take three lengths of wood: 200, 250, or 330mm, with a maximum diameter of 450mm. The crossed splitter produces 16 tons of power, and the kindling/log section is adjustable from 20mm to 150mm.
Power Sources: 3-Phase Electric and Petrol engine.
*PTO version available via special request
Options
Discharge spouts for piled-up bagging are available in 20 or 40-litre versions.
Time meter for the electric version
Pricing from £25,065 + VAT
Free Delivery (Mainland UK)!
See the specification sheet below for more options.

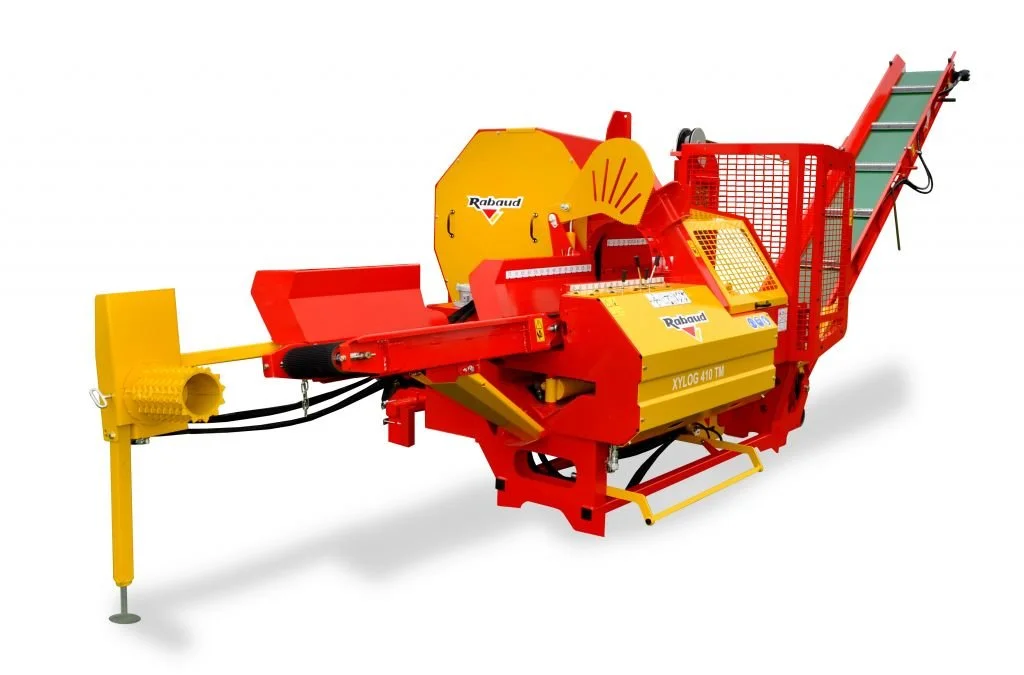

XYLOG 410
The XYLOG 410 wood processor has a maximum cutting diameter of 410 mm with 16 tons of splitting power. It is quick and easy to adjust the lengths of logs for 200, 250, 300, 330, 400, 450 or 500 mm.
It uses a 1000mm diameter circular saw with carbide teeth and has four possible splitting wedges (0/2/3, 2/4, 2/6, or 2/8)
The hydraulic clamp holds the logs with a tunnel form to center them properly, ready for cutting.
The 4 m or 4.5 m discharge conveyor on the TH version is fitted with metal bars made of several strips for easy and cost-effective maintenance. The conveyor is height adjustable and foldable for transportation.
Driven by PTO, the minimum tractor requirement is 35Hp, and the maximum is 100Hp with a 3-point hitch.
Adding a petrol or electric motor and a remote control is possible.
Prices from £22,035 + VAT
Free Delivery (Mainland UK)!
See the specification sheets below for more options.

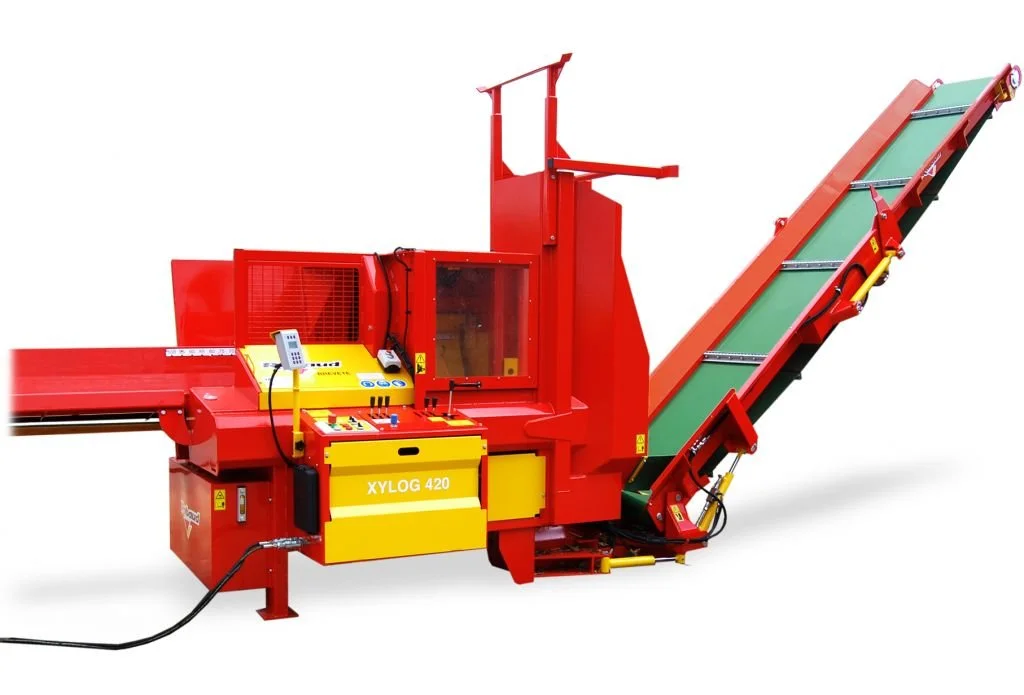

XYLOG 420
The XYLOG 420 is adaptable on a 3-point tractor linkage or is available in 3-phased electric with a cutting diameter of up to 420mm and easy adjustment for lengths from 150 mm to 500 mm.
The machine automatically adjusts the splitting power according to the strain (18 tons at low speed and 12 tons at fast speed).
The splitting wedge adjusts hydraulically for 0/2/4/6 or 0/2/4/8.
The XYLOG 420 is fitted with a XYLOMETER, an automated wood scaling system, which allows for the exact measure of the volume of wood produced.
A side-shifted splitter with a V-shaped canal is used for better wood alignment, and the splitting cycle is manually or automatically positioned.
Options include an extended intake and unloading conveyor, LED lights on the saw, a waste collector and sawdust vacuum, plus more.
Prices from £22,295 + VAT
Free Delivery (Mainland UK)!
See the specification sheets below for more options.

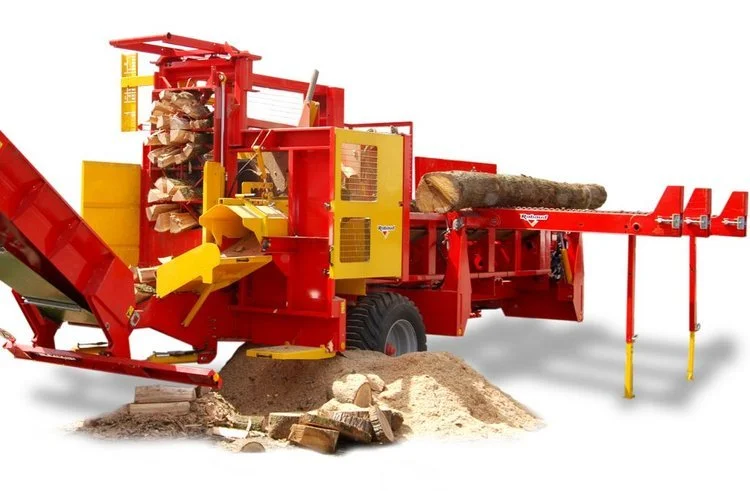

XYLOG 600
The XYLOG 600 is ideal for large-scale professional firewood production. It has an adjustable cutting length from 250 mm up to 500 mm with a maximum cutting diameter of 600mm. It has a powerful 35-ton cylinder with automatic speed and continuous variation ISO power.
The hydraulic splitting cross automatically positions the splitter depending on the wood diameter and splits in 2, 4, 8 or 16. This machine has the possibility of sawing an armful of logs at once and splitting at the same time using separate cutting and splitting areas. Logs that don’t need to be split can be unloaded without passing through the splitting area for quick and efficient work.
The XYLOG 600 is available as a mobile version (PTO 540 rpm) or a stationary version (electric or motor-driven). The mobile version uses a 2m loading chain platform with a hydraulic folding and height-adjustable 4 m conveyor. In comparison, the stationary version has a loading chain platform from 5m with an 8m swiveling discharge conveyor.
Pricing: POA
Free Delivery (Mainland UK)!
See the specification sheets below for more options.

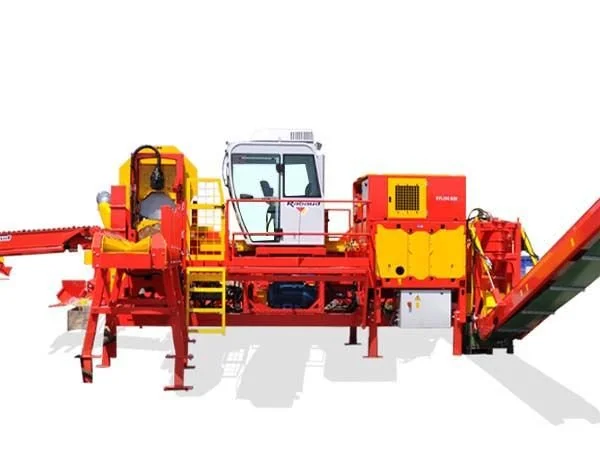

XYLOG 520
The XYLOG 520 is either PTO, engine, or electrically driven and uses a carbide circular saw blade with a maximum diameter of 1300 mm to easily cut diameters of up to 520mm with cutting lengths adjustable from 200mm to 500mm.
The adjustable log section splits from 30 to 250 mm with 2 ‘V’- shaped blades producing 22 tons of power.
The operator-friendly cab includes a comfortable seat, sound proofing, air con, heating, and even a radio.
It has a hydraulically movable output conveyor which is orientated by 40°, and a screening system, which uses hedgehog rollers.
Using remote draining and easy access to hydraulic and electric chambers the maintenance for this machine is simple. It can connect to wifi for fast and efficient technical support even from a distance.
Pricing: POA
Free Delivery (Mainland UK)!
See the specification sheets below for more options.

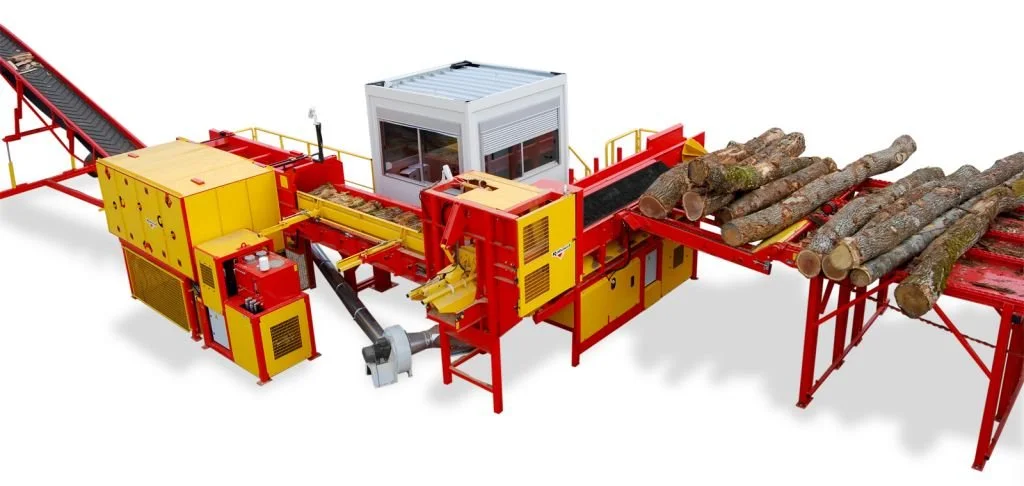

XYLOG 800
The XYLOG 800 is driven by two 3-phase engines. It uses a 3-chain feeding deck up to 8m in length (for the stationary version). The feeding conveyor and 2 ‘V’-shaped bands 400 m wide and 4 m long ensure the correct placement of wood leading to the cutting system. It is quick and easy to adjust the cutting length from 25omm to 500mm, cutting bottom to top for better productivity, making it time-saving for small diameter logs.
The buffer zone, with a 3-meter conveyor, is perfect for continuous log feeding to the splitting area, which uses two independent blades with three independent press devices for better wood holding.
The blades use the IOS power system to control the speed and required power. The chainsaw is self-tensioning and self-lubricating.
Pricing: POA
Free Delivery (Mainland UK)!
See the specification sheets below for more options.
