Vibrating Post Drivers

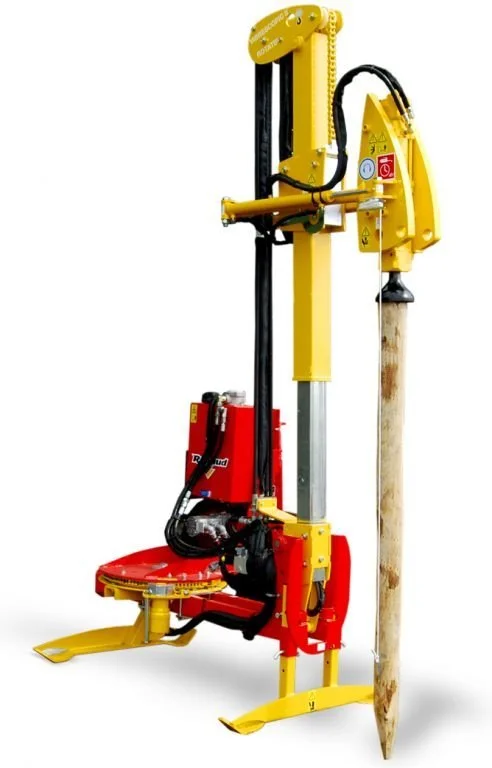

VIBRESCOPIC II Evolution / Rotary Stock breeder.
The VIBRESCOPIC II & III drives posts (from 600 to 3000mm) in to all types of ground thanks to the exclusive power regulation of the striking controlled by the user, from 0-950 stokes/min.
The hammer side shift allows you to avoid the existing vegetation and is ideal for fence renovation.
Having a telescopic mast makes the machine compact for transportation.
For excellent accuracy the post is guided during all the driving process and will not be damaged due to the power regulator.
With incomparable safety the hammer only strikes when the post is held under the head, which can be controlled from the driver’s cab thanks to simple electro-hydraulic control.
Prices from £14,335 + VAT
Free Delivery (Mainland UK)!
See specification sheets below for more options.
VIBRESCOPIC PRO
The VIBRESCOPIC PROFESSIONAL is perfect for driving all types of posts (700mm to 3300mm) into all types of grounds and has quick coupling onto tractors thanks to the stabilizing system avoiding the bracing – exclusive to Rabaud.
It can work in all positions, side shift, tilting and rotation at 180° with the possible mounting of an inclinometer for automatically correcting the slope – Rabaud exclusive.
The hydraulic side shift respects the vegetation with the control process being from the driver’s cab or on the rear of the machine. The driving depth can be adjusted by a knob – Rabaud exclusive.
The post can be recentered during the driving process without damaging it thanks to the concave striking head.
Prices from £27,830 + VAT
Free Delivery (Mainland UK)!
See specification sheets below for more options.

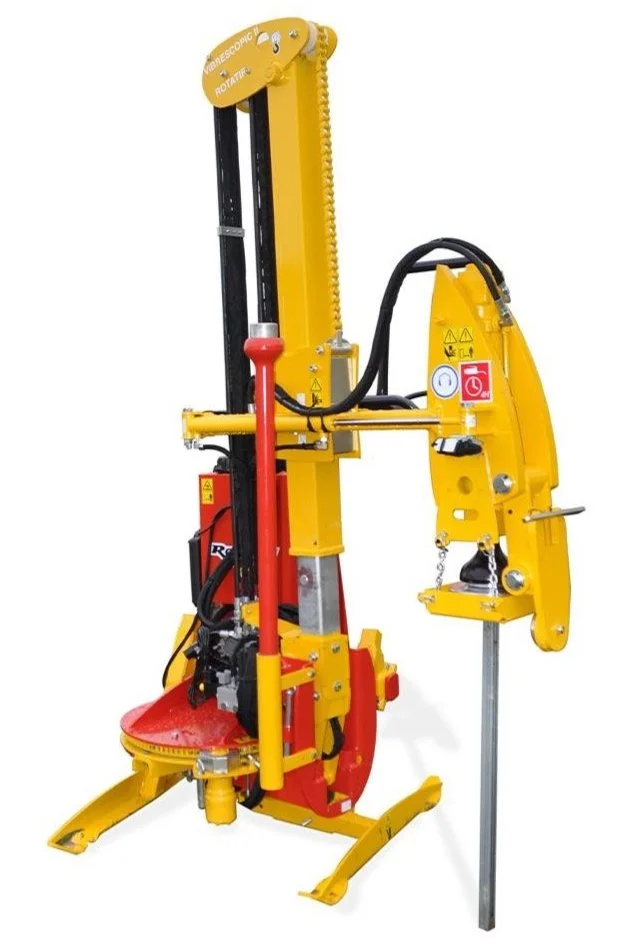

VIBRESCOPIC II SIMPLE VITI ARBO / EVOLUTION VITI ARBO / ROTARY VITI ARBO
Drives posts (from 0.60 to 3 m length), in all types of grounds thanks to the exclusive power regulation of the striking controlled by the user: from 0 to 950 strokes/min. Works in all positions: side shift, tilting and 30° rotation (optional).
The offset at the hammer prevents the destruction of existing vegetation; this means the machine is the ideal tool for fence renovation.
Small size during transport and operation thanks to the telescopic mast.The stake is guided all along the ramming process making it excellent for precision.
Sturdy, forged, milled and processed striking head, Ø 150 mm (Ø 120 mm optional) with 2 YEARS WARRANTY. The hammer vibrates only when the post is in direct contact with the striking head so this machine is excellent for safety. Thanks to a simple electrohydraulic control box the machine can be controlled from the operators cab or on the tool
Prices from £12,615 + VAT
Free Delivery (Mainland UK)!
See specification sheets below for more options.

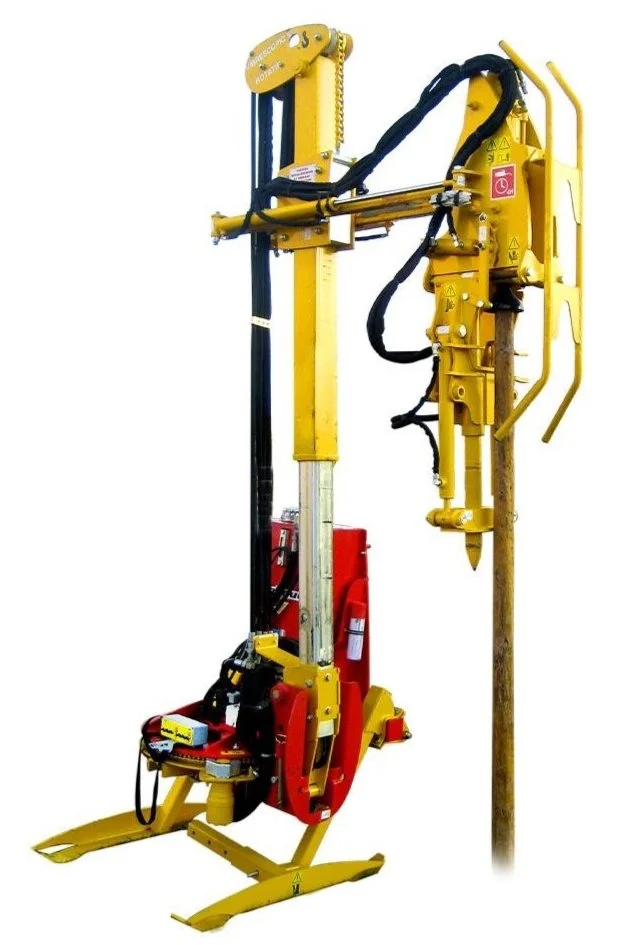

VIBRESCOPIC III EVOLUTION VITI / ROTARY VITI (+ HOLE BAR with automatic positioning)
Drives posts (from 0.60 to 3 m length), in all types of grounds thanks to the exclusive power regulation of the striking controlled by the user: from 0 to 950 strokes/min and works in all positions: side shift, 30° rotation and 220 ° tilting.
The 50 cm offset at the hammer level prevents the destruction of existing vegetation; this means the machine is the ideal tool for fences’ renovation.
The pre-hole bar has automatic positioning.
Small size during transport and operation (telescopic mast).
Sturdy, forged, milled and processed striking head, Ø 150 mm (Ø 120 mm optional) – 2 YEARS WARRANTY.
Excellent safety as the hammer only vibrates when it is directly in contact with the post.
Machine’s control panel from the operator’s cab or on the tool thanks to a simple electrohydraulic control box.
Prices from £22,400 + VAT
Free Delivery (Mainland UK)!
See specification sheets below for more options.
VIBRESCOPIC PRO VITI with 220° hydraulic rotation.
The VIBRESCOPIC PRO VITI drives all posts form 0/7m to 3.3m in all types of grounds and works in all positions, side shift, tilting and 180° rotation.
The 1m hydraulic offset on the hammer’s head respects the surrounding vegetation. Stakes can be properly realigned without damage due to the slightly concave striking head.
A mini handle controls the tool from its side or from the driver’s cab.
As an added option there is a tit meter to automatically correct the slope – RABAUD EXCLUSIVE
Prices from £23,725 + VAT
Free Delivery (Mainland UK)!
See specification sheets below for more options.

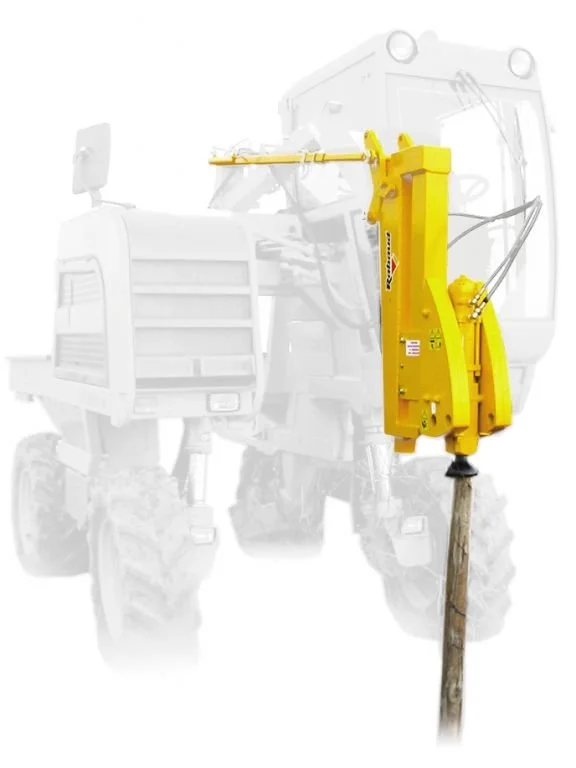

VIBRESCOPIC II SIMPLE on tool carrier / between tractor wheels / on straddle grape harvester
The VIBRESCOPIC II works in all positions driving in all types of posts in all grounds thanks to the power regulation of the striking controlled by the user. As the post is held throughout the process the accuracy is excellent.
The electro-hydraulic control box makes controlling the post driver easy from either the driver’s cabin and/or behind the machine.
With the hammer only strking when the post is held under the head this machine is incomparable for safety.
The machine is compact for transportation and use.
Prices from £6,655 + VAT
Free Delivery (Mainland UK)!
See specification sheets for more options.
VIBRESCOPIC II STILTOR
The VIBRESCOPIC II STILTOR has a side shift of .75m left - right and works in all positions driving in all types of posts in all grounds thanks to the power regulation of the striking controlled by the user. As the post is held throughout the process the accuracy is excellent.
The electro-hydraulic control box makes controlling the post driver easy from either the driver’s cabin and/or behind the machine.
With the hammer only strking when the post is held under the head this machine is incomparable for safety.
Prices from £10,340 + VAT
Free Delivery (Mainland UK)!
See specification sheets below for more options.

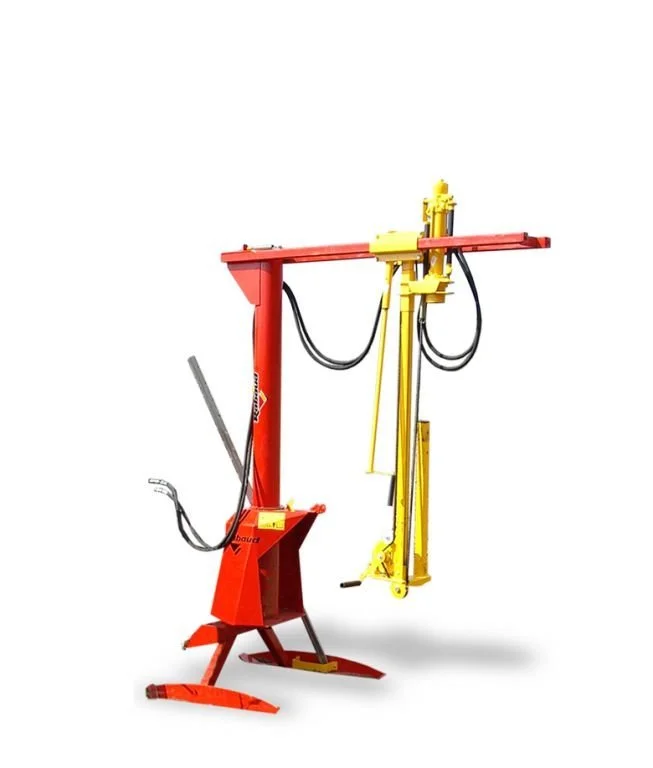

VIBRESCOPIC 150
The VIBRESCOPIC 150 drives posts through hammering up to 1000 stokes/min with only 15L/min oil flow. It can drive all kinds of posts (which can be carried on the side of the machine) for example iron, wood etc.. and can be coupled on all types of tractors.
Simple to use with the mechanical movements ensured by the crank handles, with a side shift of 1625mm, telescopic mast and a rotation of 180°.
The folding mast and hammer allow for total safety during transportation and the hammer can be taken off for manual use.
Prices from £3,685 + VAT
Free Delivery (Mainland UK)!
See specification sheets below for more options.

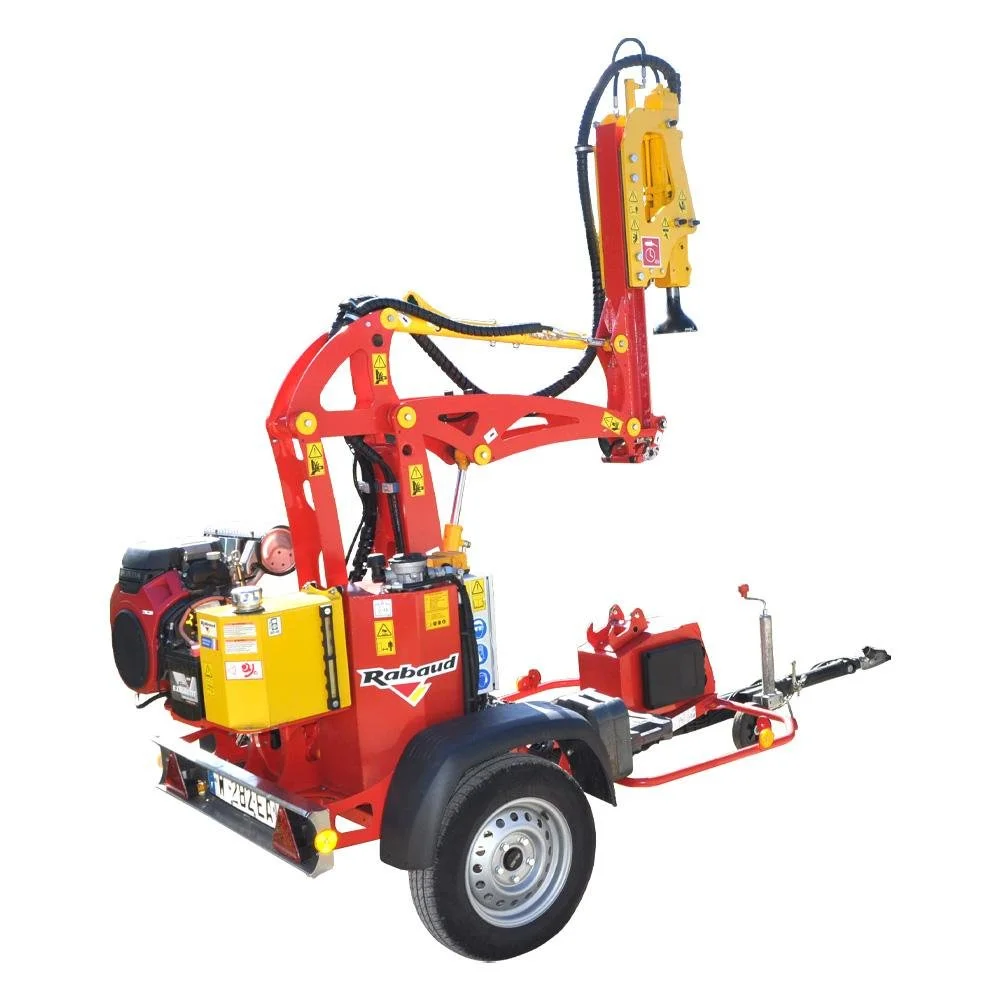

VIBRESCOPIC 15/35 M on Road Trailer
Pile driver mounted on a 130 km/h approved road chassis, weighing less than 750 Kg The pile shaft is mounted on a 360° turret, allowing you to work on the right, left or in the axis. The telescopic arm can push piles up to 2.80 m and a lateral offset of 0.70 m beyond the road gauge.
The impact hammer is mounted on a mast with anti-wear slides constructed of ertalon. The hammer cylinder allows the stake to be guided throughout the depression while exerting a support force during the strike. All movements (ascent/descent of the hammer, rotation, offset, inclination) are controlled remotely by a radio control.
The machine is fully foldable for transport.
VIBRESCOPIC PRO 17/35 MP
The VIBRESCOPIC PRO is adaptable on a telescopic, front or compact loader with a hitch provided according to your carrier.
As the stake is guided all along the ramming process it is exceptionally precise.
Posts are not damaged since the power is regulated.
The driver has an integrated stand for storage.
Prices from £6,165 + VAT
Free Delivery (MainlandUK)!
See specification sheets below for more options.

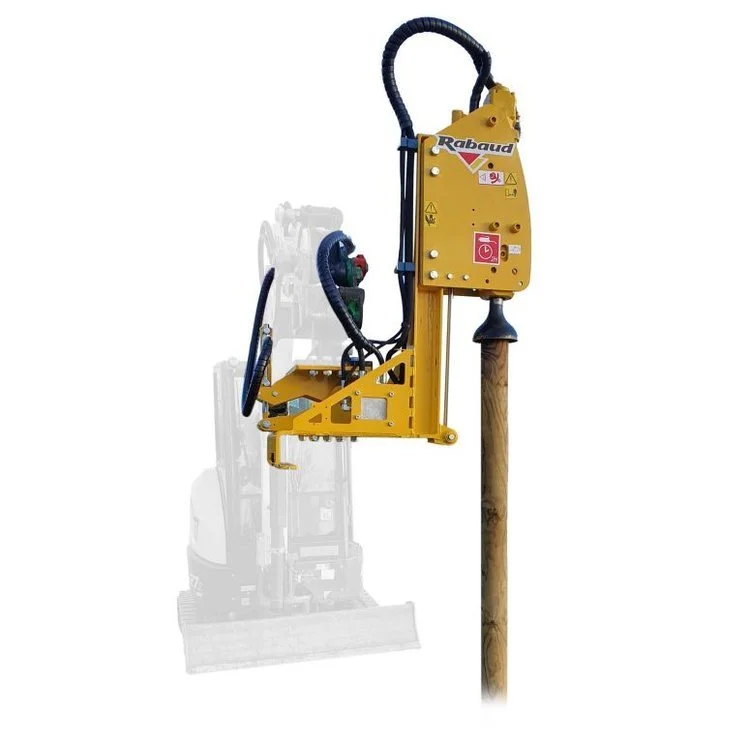

VIBRESCOPIC II PRO 15/35 35/55 35/95 MP
The VIBRESCOPIC II PRO is adaptable on mini excavators or backhoe loaders with an automatic or quick-fit coupling for your brand of machine.
The driver drives various posts into all grounds without adjustment and has excellent accuracy thanks to the post being held during the work.
Having adjustable power means the posts don’t get damaged during the driving process.
Prices from £5,880 + VAT
Free Delivery (Mainland UK)!
See specification sheets below for more options.
