Wire Unwinding Machines

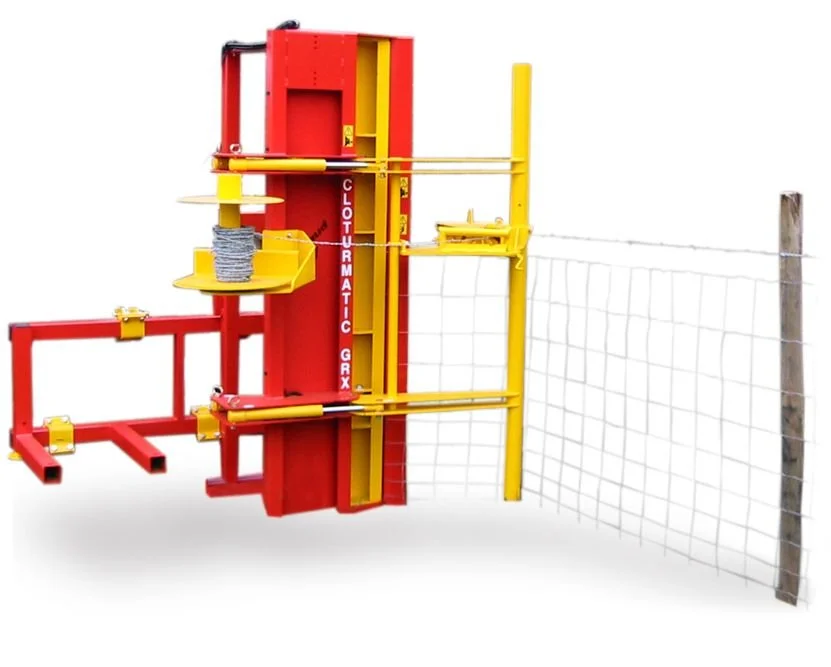

CLOTURMATIC GRX 4020 / 8025
The CLOTURMATIC GRX attaches to a tractor by the pump with 4 couplers or by the PTO (oil flow 34 l/min) and safely unwinds wire netting rolls up to 2500 mm high (on the GRX 8025 model ) and diameters up to 800 mm, with the option of unwinding 1 or 2 strands of barbed wire on top of the netting.
The hydraulic stretching system of the wire is controlled by the user from the cab and the netting is unwound in a vertical position to be put up effortlessly.
There is an option of staple air gun.
Prices from £5,720 + VAT
Free Delivery (Mainland UK)!
See specification sheets below for more options.
CLOTURMATIC RXB 2 / 3 / 4 / 5
The CLOTURMATIC RXB runs off the tractor pump or PTO and is available in 4 models for making barbed wire fencing with 2, 3, 4 or 5 strands in only one pass. It unwinds and puts up barbed wire coils up to 500 m long and even stretches it thanks to the stretching pinions and their separate disc brakes.
The 1000 mm hydraulic side shift perfectly lines up the barbed wire against the post with the option of an added slope corrector for +/- 30°. The distance between the rows is adjustable. There is a loading platform for putting the barbed wire coils and the option of a staple air gun.
Prices from £11,285 + VAT
Free Delivery (Mainland UK)!
See specification sheets below for more options.
CLOTURMATIC GRX 8025 PE
Adaptable to excavators over 6 tons, this tool allows for the unrolling and installation of rolls of tied, welded, or multi-twisted mesh with a maximum height of 2.50 meters.
The wire mesh unroller on the GRX shovel is ideal for securing road edges, delineating properties, or creating enclosures for animals.
The mini-excavator can access all types of terrain or construction sites, unlike the model behind a tractor.
Loaded on a platform, the wire mesh roll unrolls vertically as the shovel advances, allowing for clean and effortless work. The machine is equipped with a hydraulic tensioning system, operated in the cabin by the operator, to press the mesh along the posts for maximum tension, even on uneven terrain. A hydraulic holding clamp maintains tension and prevents any unwinding during roll junction or nailing operations, ensuring a quality fence.
Prices from £7,090 + VAT
Free Delivery (Mainland UK)!
See specification sheets below for more options.
DEROULMATIC
The DEROULMATIC mechanically unwinds plain wire. It is capable of unwindng plain wire coils on 1 – 5 rows at a time and has the option to wind 2 plain wire coils at one time thanks to the hydraulic winding system which requires the tractor pump and 2 couplers.
The coil diameter is adjustable thanks to 4 separate supports on each plate and each plate is removable for easy coil extraction. There is also an option to attach an irrigation hose unwinder.
The machine is easily disassembled without tools for easy transportation.
Prices from £1,330 + VAT
Free Delivery (Mainland UK)!
See specification sheets below for more options.
